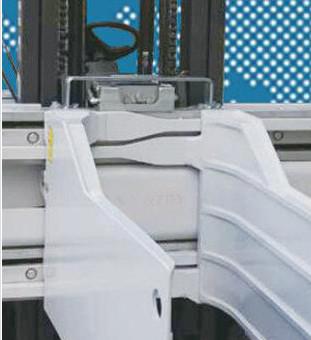

1700kg 2500kg Forklift attachment clamp
Functions & Applications
Forklift binding clamp can efficiently and economically handle almost any type of binding products, such as cotton, waste paper, corrugated paper, chemical fiber, metal, industrial waste, etc. it has a very wide range of application scenarios. It is suitable for papermaking, textile, chemical fiber, waste paper recycling, port and other industries. Pallet handling and stacking operations.
Options
* User defined opening range
* Custom arm size
* Various installation categories are available
* Load backrest
* Bolt bale arm
Parameter
Capacity@
Load Center
(Kg@mm) | Model No. | Opening Range
O (mm) | Arm Height
A (mm) | Arm
Length
B (mm) | Frame
Width
C (mm) | Arm
Thickness
D (mm) | Overall
Height
E (mm) | Vertical
Center of
Gravity
CGV(mm) | Weight
(kg) | Effective
Thickness
ET(mm) | Horizontal
Center of
Gravity
CGH(mm) |
| 1700@500 | BCS20A-103A | 455-1735 | 420 | 685 | 1040 | 82 | 665 | 220 | 310 | 127 | 203 |
| 1700@500 | BCS20A-104A | 455-1735 | 420 | 785 | 1040 | 82 | 665 | 220 | 337 | 127 | 239 |
| 1700@500 | BCS20A-105A | 450-1730 | 420 | 915 | 1040 | 82 | 665 | 220 | 378 | 127 | 307 |
| 1700@500 | BCS20A-106A | 450-1730 | 420 | 991 | 1040 | 82 | 665 | 220 | 382 | 127 | 315 |
| 1700@500 | BCS20A-107A | 450-1730 | 420 | 1194 | 1040 | 82 | 665 | 220 | 425 | 127 | 401 |
| 2500@500 | BCS30A-108A | 550-1900 | 480 | 991 | 1015 | 98 | 730 | 255 | 516 | 142 | 315 |
| 2500@500 | BCS30A-108B | 550-1900 | 480 | 991 | 1015 | 98 | 730 | 255 | 519 | 150 | 312 |
| 2500@500 | BCS30A-109A | 545-1890 | 480 | 1194 | 1015 | 98 | 730 | 255 | 574 | 142 | 396 |
| 2500@500 | BCS30A-109B | 545-1890 | 480 | 1194 | 1015 | 98 | 730 | 255 | 590 | 150 | 391 |
| 2500@500 | BCS30A-110A | 550-1900 | 480 | 915 | 1015 | 98 | 730 | 255 | 498 | 142 | 307 |
| 2500@500 | BCS30A-110B | 550-1900 | 480 | 915 | 1015 | 98 | 730 | 255 | 501 | 150 | 305 |
| 2200@500 | BCS30A-111B | 490-2300 | 480 | 990 | 1600 | 98 | 730 | 255 | 660 | 150 | 240 |
| 2200@500 | BCS30A-112B | 490-2300 | 480 | 1195 | 1600 | 98 | 730 | 255 | 680 | 150 | 240 |
Remark
1. Obtain the actual capacity of forklift and accessories from the forklift manufacturer.
2. Two sets of additional oil circuits are required on the forklift.
3. The open arm range is the space between the two arm tips.
4. The arm thickness "d" is the actual required operating space.
5. Rotate the bale clamp optionally.
Applicable Industries
Building materials stores, farms, retail, construction engineering, wool, synthetic fiber, textile packaging
Can be customized according to size
Customized solutions:
1. Carton Clamp
2. Block Clamp
3. Bale Clamp
4. Roll Clamp
......
all kinds of attachment
