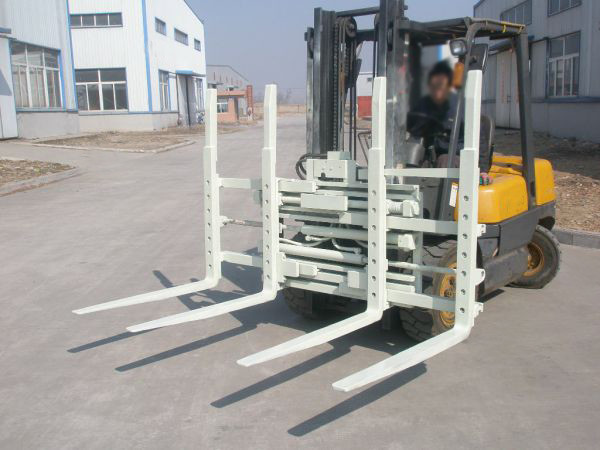

Forklift attachment single double pallet handlers 1370*80*45mm fork
FDS25G-A013 Minimum Truck Carriage Width 914mm, Backrest Height 1220mm, Vertical Center of Gravity 246mm, Weight 542kg, Effective
Thickness 226mm
FDS25G-B013 Minimum Truck Carriage Width 914mm, Backrest Height 1220mm, Vertical Center of Gravity 254mm, Weight 538kg, Effective
Thickness 221mm
Functions & Applications
Flexible application of single or double pallets handling. Be widely used for handling and stacking operations in food and beverage industry, import and export trade and bulking goods industry. Particularly apply to handle and stack palletized goods in container truck.
Features
* Use simple hydraulic components to protect the hydraulic and extend the service life.
* Use high strength alloy material.
Options
* Different fork width and length
* Different mounting class
Parameter
Capacity@
Load Center
(Kg@mm) | Model No. | Minimum Truck Carriage Width
(mm) | Frame Width
(mm) | Opening
Range ITI
ITI (mm) | Opening
Range OTO
(mm) | Avg.Pallet Spread | Frork
Set Spread | Fork Size
(mm) | Backrest Height
H
(mm) | Vertical
Center of
Gravity
VCG
(mm) | Weight
(kg) | Effective
Thickness
ET(mm) | Horizontal
Center of
Gravity
HCG(mm) |
| 2500@600 | FDS25G-A013 | 914 | 1100 | 330-715 | 660-2035 | 279 | 660 | 1370*80*45 | 1220 | 246 | 542 | 226 | 287 |
| 2500@600 | FDS25G-B013 | 914 | 1100 | 330-715 | 660-2035 | 279 | 660 | 1370*80*45 | 1220 | 254 | 538 | 221 | 284 |
Remark:
1. Obtain the actual capacity of the forklift and attachments from the forklift manufacturer
2. Two sets additional oil circuit required on forklift.
3. Sideshiting left 100mm, right 100mm
Other size available on request.
Hydraulic Flow&Pressure
| Model | Min.
Hydraulic
Flow(L/min) | Rec.
Hydraulic
Flow(L/min) | Max.
Hydraulic
Flow(L/min) | Min.
Hydraulic
Pressure(Bar) | Max.
Hydraulic
Pressure(Bar) |
| FDS25G | 20 | 40 | 60 | 35 | 160 |
Options:
Heighten load backrest
Different mounting class
Applicable Industries
Manufacturing Plant, Hotels, Garment Shops, Building Material Shops
Can be customized according to size
Customized solutions:
Carton Clamp
Block Clamp
Bale Clamp
Roll Clamp
......
all kinds of attachment
