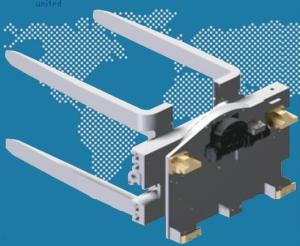

Forklift attachment turnaload with 50x150x1220mm forks
Product Description
TAL30D-006B Fork Size 50x150x1220mm, Frame Width 1015mm, EffectiveThickness 345mm, Vertical Center of Gravity 270mm
TAL30D-007B Fork Size 50x150x1220mm, Frame Width 1015mm, EffectiveThickness 345mm, Vertical Center of Gravity 270mm
Options
* Fork sizes
* Various mounting classes available
* Custom opening ranges
Parameter
Capacity@
Load Center
(Kg@mm) | Model No. | Mounting Class | Opening Range
(mm) | Fork
Size
(mm) | Frame
Width
D(mm) | Fork
Spacing (mm) | Vertical
Center of
Gravity
CGV(mm) | Weight
(kg) | Effective
Thickness
ET(mm) | Horizontal
Center of
Gravity
CGH(mm) |
| 2300@600 | TAL30D-006B | III | 640-1950 | 50x150x1220 | 1015 | 635(4fork) | 270 | 880 | 345 | 300 |
| 2300@600 | TAL30D-007B | III | 710-2060 | 50x150x1220 | 1015 | 754(4fork) | 270 | 760 | 345 | 300 |
Remark:
1. Obtain the actual capacity of the forklift and attachments from the forklift manufacturer.
2. Two sets additional oil circuit required on forklift.
3. Opening range is the space between two arms tip.
4. Fork size can be customized according to user requirements.
Installation&Option
Hydraulic Flow&Pressure
| Model | Min.
Hydraulic
Flow(L/min) | Rec.
Hydraulic
Flow(L/min) | Max.
Hydraulic
Flow(L/min) | Min.
Hydraulic
Pressure(Bar) | Max.
Hydraulic
Pressure(Bar) |
| TAL30D | 20 | 40 | 60 | 35 | 160 |
Rotator Specifications
| Model | Rotator Speed | Rotator Torque |
| TAL30D | 5.2r/min@57L/min | 9000N.m@160Bar |
Applicable Industries
Manufacturing Plant, Chemical fiber, Workshop, Port industries
Can be customized according to size
Customized solutions:
Carton Clamp
Block Clamp
Bale Clamp
Roll Clamp
......
all kinds of attachment
